AWMS-RHXB Monitor Arm

  • AWMS RHXB Monitor Arm 1
  • AWMS RHXB Monitor Arm 2
  • AWMS RHXB Monitor Arm 3
  • AWMS RHXB Monitor Arm 4
  • AWMS RHXB Monitor Arm 5
  • AWMS RHXB Monitor Arm 6
Zoom Icon
  • AWMS RHXB Monitor Arm 1
  • AWMS RHXB Monitor Arm 2
  • AWMS RHXB Monitor Arm 3
  • AWMS RHXB Monitor Arm 4
  • AWMS RHXB Monitor Arm 5
  • AWMS RHXB Monitor Arm 6

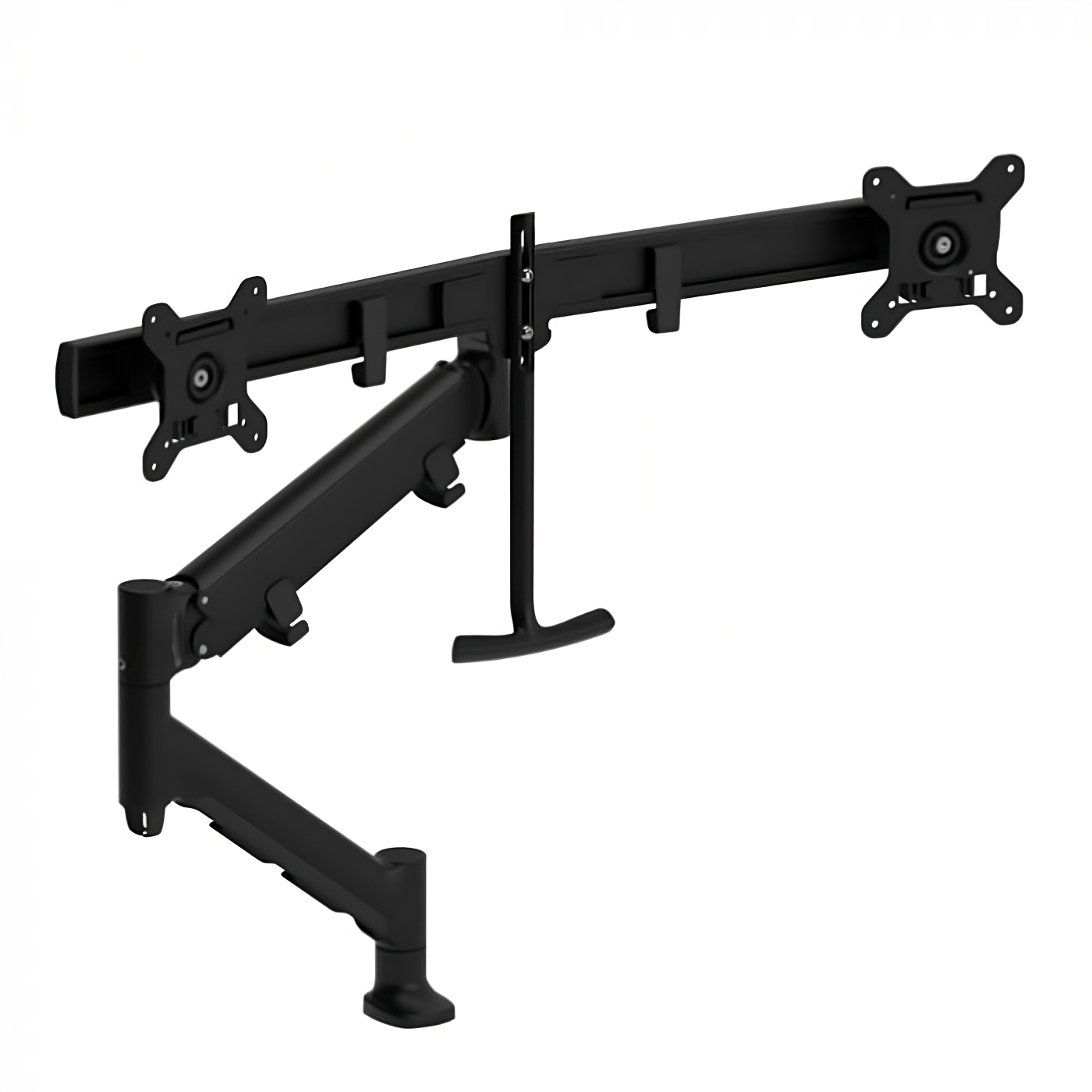

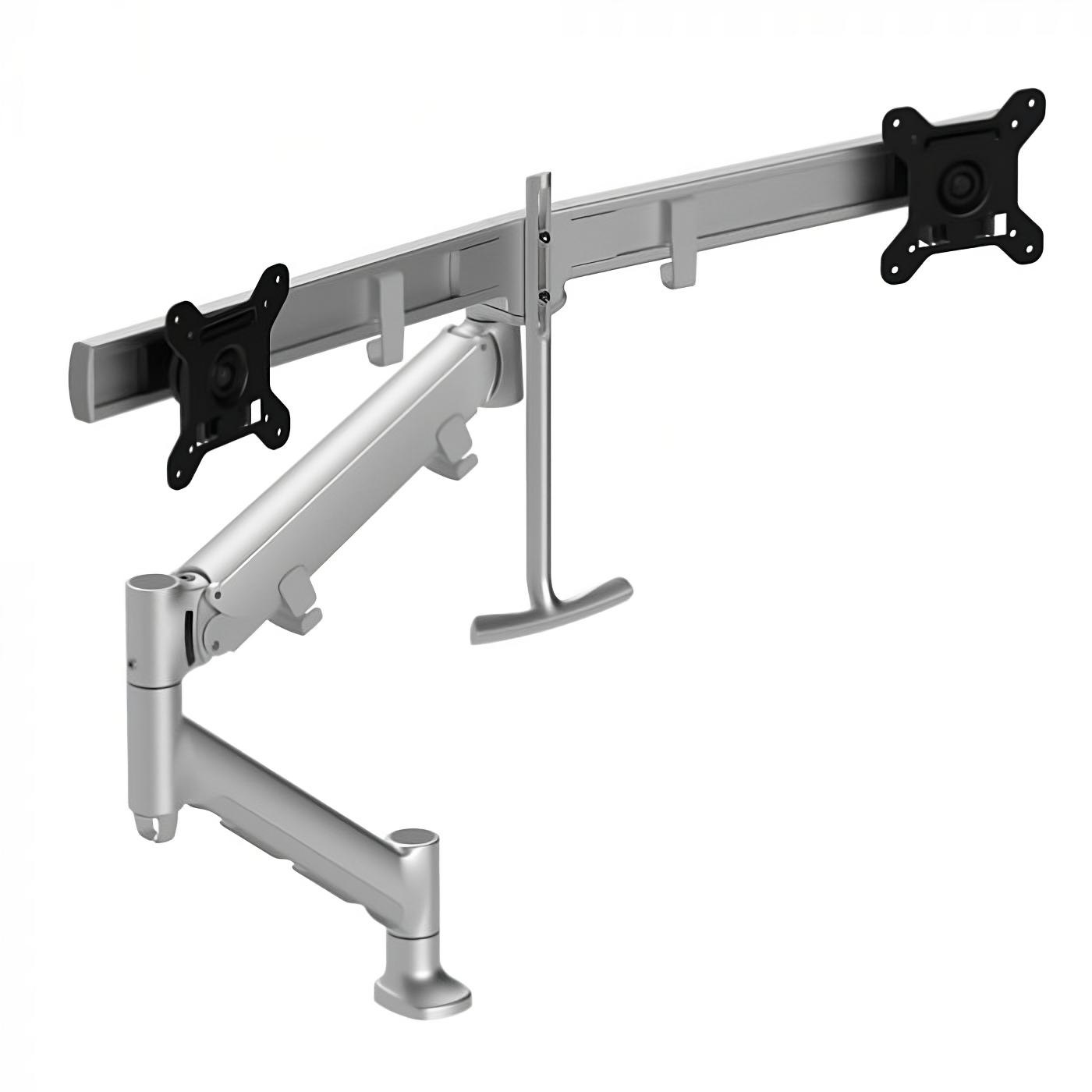

Direct to desk dual display crossbar dynamic arm desk mount. Max load: 2-7kg per monitor.

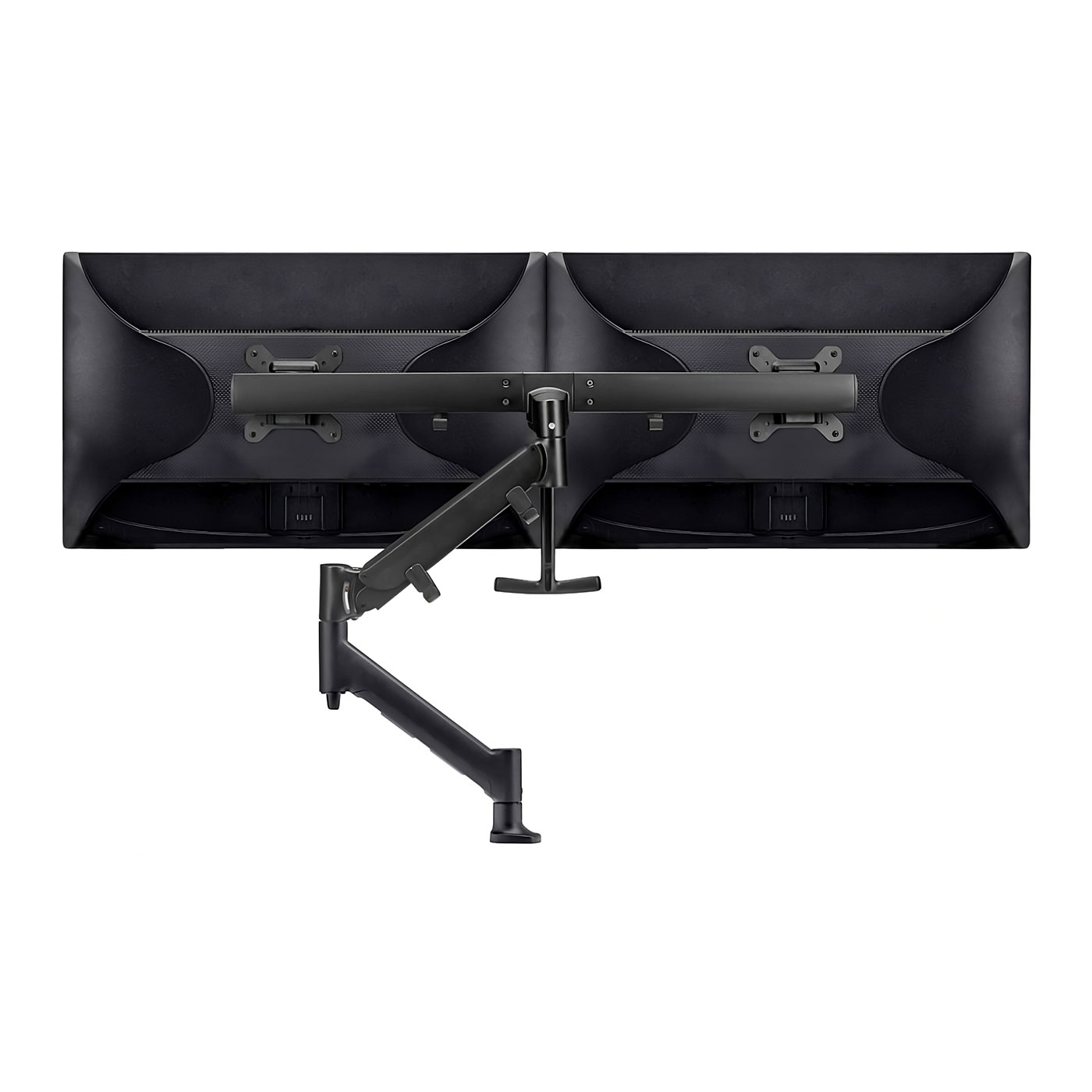

The AWMS-RHXB dual crossbar display desk mount is designed to support two displays with a single monitor arm. Its spring-assisted design with three points of articulation enables effortless simultaneous adjustment of both monitors from a seated position. The crossbar features a horizontal rail which enables display position adjustment in both directions, to accommodate monitors of different sizes and landscape/portrait configurations.

This solution is part of the Atdec modular family and features the following individual components:

  • 1 x AWM-AHX dynamic arm
  • 1 x AWM-LR crossbar
  • 1 x AWM-LB desk base

Choose your preferred desk fixing option (not included).

Ideal for:

two monitors up to 27" in a side-by-side landscape configuration as well as landscape/portrait configurations. Perfect for multi-user environments and sit-to-stand desks.


monitor requirements may change over time, often from two smaller monitors to a single large format display (i.e. from 2 x 24" to 43" or ultra-wide 49"). This can be easily achieved by replacing the dual crossbar with the AWM-LTH heavy duty VESA head (sold separately).

To purchase the AWMS-RHXB MONITOR ARM, please contact our Sydney showroom.


  • Functionality specifications

    • 75 x 75 or 100 x 100 VESA. Recommended load: 2-7kg per monitor
    • Up to 5kg of counterbalance for uneven loads (different monitor weights)
    • 236mm of horizontal display movement
    • Landscape to portrait monitor rotation
    • Glare control and optimal viewing angle adjustment via tilt and pan capabilities
    • Focal distance control
  • Design considerations

    • Ergonomic spring-assisted movement for easy adjustment
    • Small footprint
    • Modular, adaptable and upgradeable design
    • Ergonomic handle (included)
    • Available in Silver, Black or White finish
    • Sleek, supple design
    • Made of durable aluminium that can be easily recycled at the end of life
  • Installation

    • Simple assembly using modular parts
    • Spring-tension visual gauge to assist with multiple desk installations
    • Quick release/attachment mechanism for easy installation and monitor replacement
    • 20-degree tool-free monitor angle adjustment
    • Built-in optional arm rotation stopper to prevent interference with walls or desk partitions
    • Choice of desk mounting options

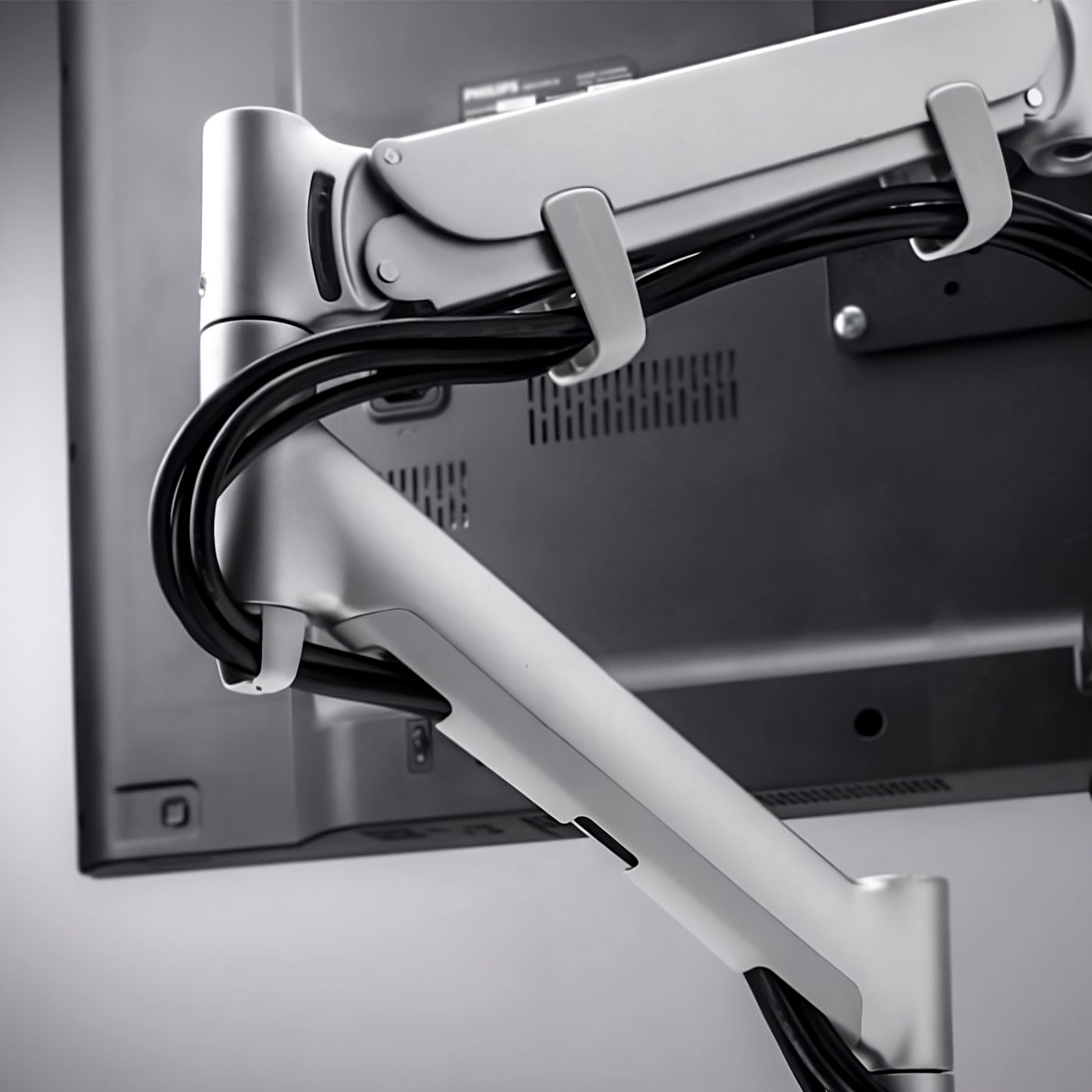

    • Advanced cable management



  • Warranty

    10 Years
